Flare Solutions

Pields Engineering offers highly efficient Smokeless Flare Stackat affordable prices.
Depending on the height, the Flare Stacks are manufactured as either 'self-supported' or 'derrick' types.

Flare Stack

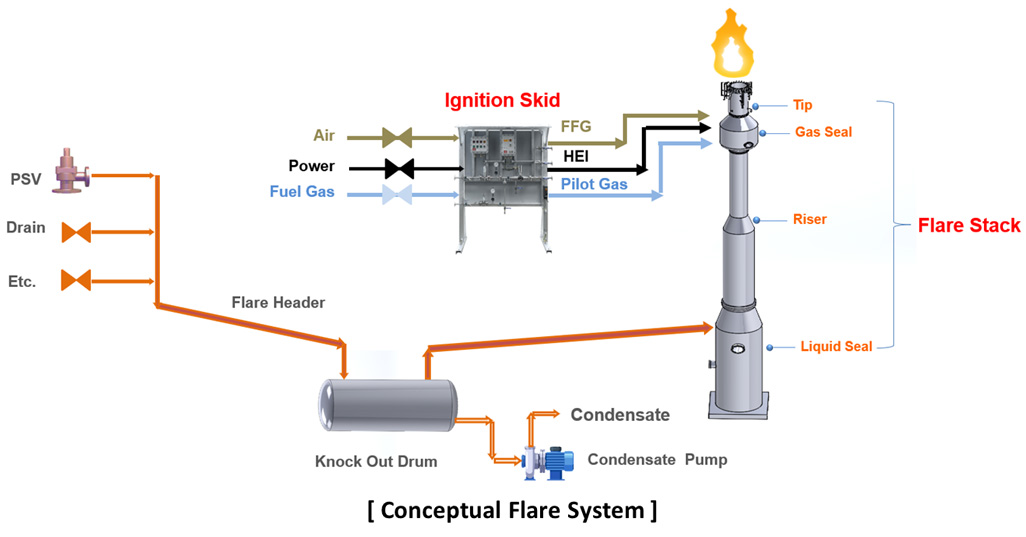

A Flare Stack is composed of Flare Tip with Pilot Burner, Gas Seal, Riser, and Liquid Seal Drum, and can be ignited automatically or
manually through Ignition Skid, available in two types as described below.

FFG (Front Flame Generator) : The flame is created by ignitor of ignition skid and sent to the pilot burner of flare tip through the pipe to ignite it.
HEI (High Energy Ignition) : High voltage is sent from the Ignition Skid via the Igniter in the Pilot Burner for ignition.

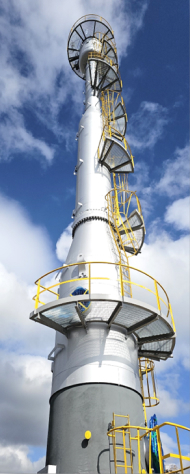

K&D Energen Co.

Project : SHC-1 Project
Location : Ulsan, Korea
Scope : Flare Stack & Ignition/Steam Skid Manufacturing
Schedule : 2024 Sep. ~ 2025 Aug. (12 Months)
Flare Stack Specification
- Flare Capacity : 200 Ton/Hr
- Flare Tip Size : 42 “
- Flare Tip Type : Steam Ring +Upper/Center Steam
- Height : 35 Meter
- Ignition Type : FFG & HEI
- Self Supported Type

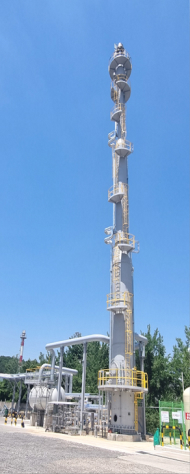

Eil INDUSTRIAL Co., Ltd.

Project : Flare Stack Engineering & Manufacturing
Location : Yeosu, Korea
Scope : Flare Stack & Ignition Skid Manufacturing
Schedule : 2023 Aug. ~ 2024 Mar. (10 Months)
Flare Stack Specification
- Flare Capacity : 105 Ton/Hr
- Flare Tip Size : 16 “
- Flare Tip Type : Upper Steam
- Height : 40 Meter
- Ignition Type : FFG & HEI
- Self Supported Type

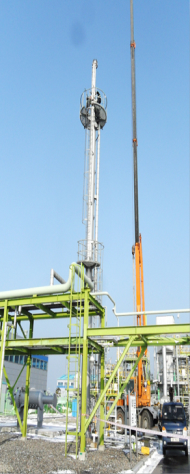

Korea Gas Corporation

Project : Waste Gas Flare Stack Localization
Location : Incheon, Korea
Scope : Flare Stack Manufacturing
Schedule : 2013 Mar. ~2013 Sep. (8 Months)
Flare Stack Specification
- Flare Capacity : 100 Ton/Hr
- Flare Tip Size : 10 “
- Flare Tip Type : Upper Steam
- Height : 21 Meter
- Ignition Type : FFG
- Self Supported Type
